Steel Frame Wall Formwork System

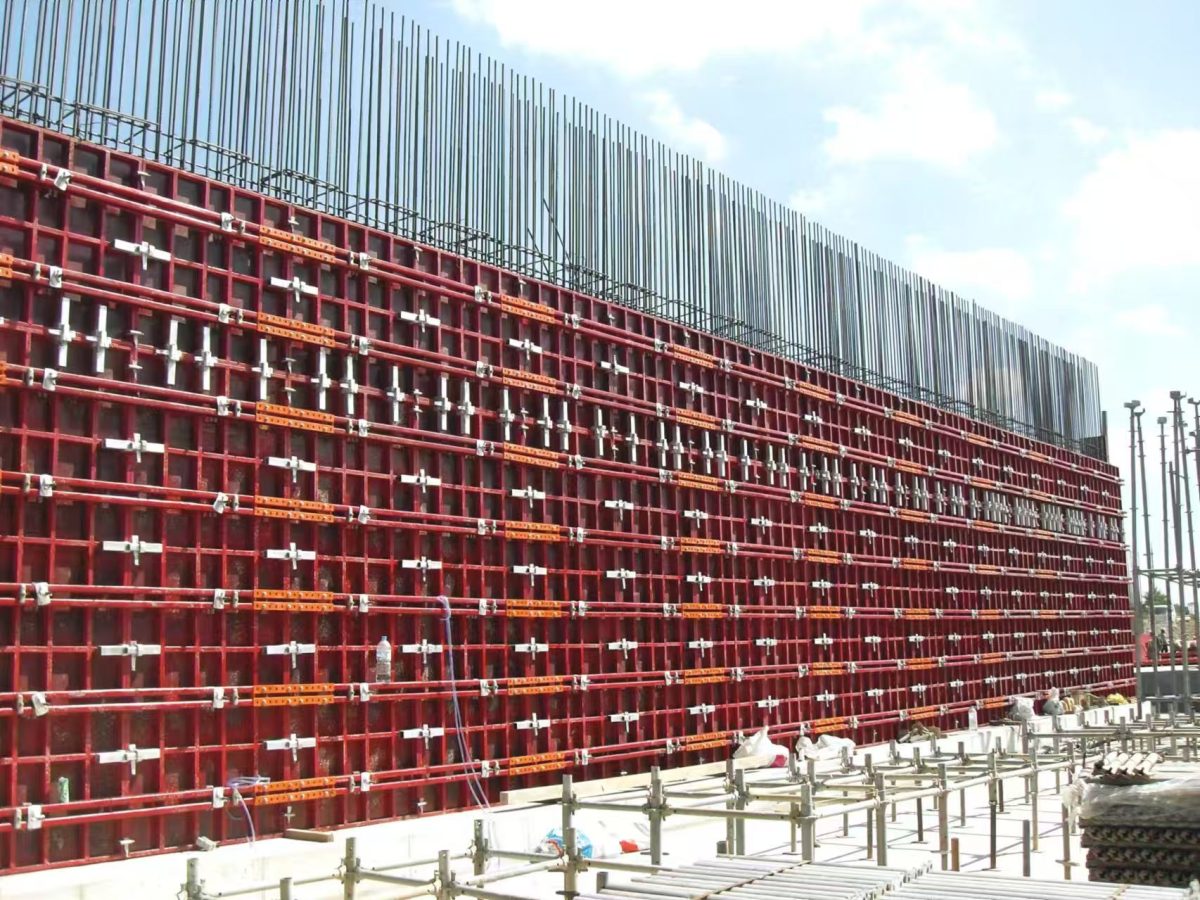

This system is a dedicated steel frame formwork for large-area wall pouring. Standard units can be assembled into large integral panels only by lock clamps, with no extra auxiliary materials needed. With high overall rigidity, it supports one-pour wall height up to 10m, with fewer joints and excellent forming quality. Equipped with a full range of back ribs, tie rod components and various lock accessories, it adapts to multiple tall wall scenarios such as basements, utility tunnels and high-rise core tubes, balancing efficiency and safety.

Parameter	Details
Single Pour Height	Safe and reliable for wall height up to 10m in one pour
Panel Connection	Standard units assembled into large panels by lock clamps only, no extra auxiliary materials

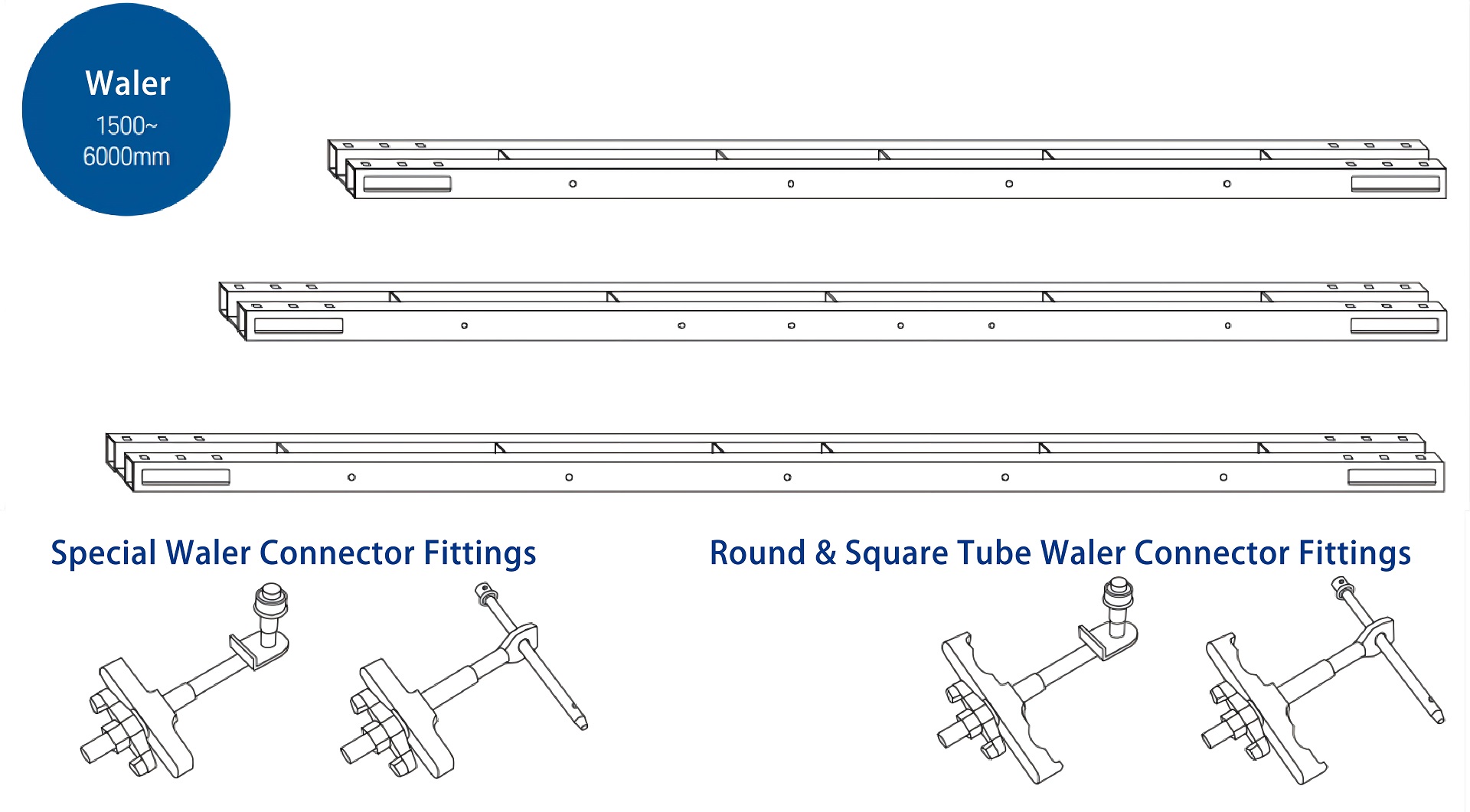

Back Rib Options	Dedicated steel back ribs, compatible with round tube / square tube back rib connectors
Tie Rod System	Complete tie rod set with cast nut, backing plate and pin plate

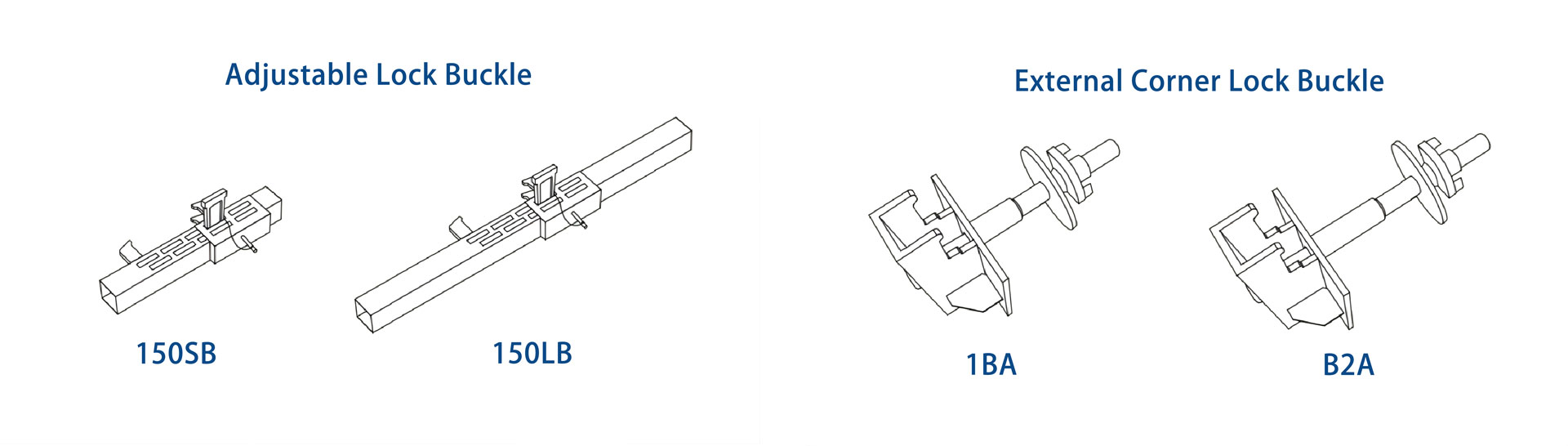

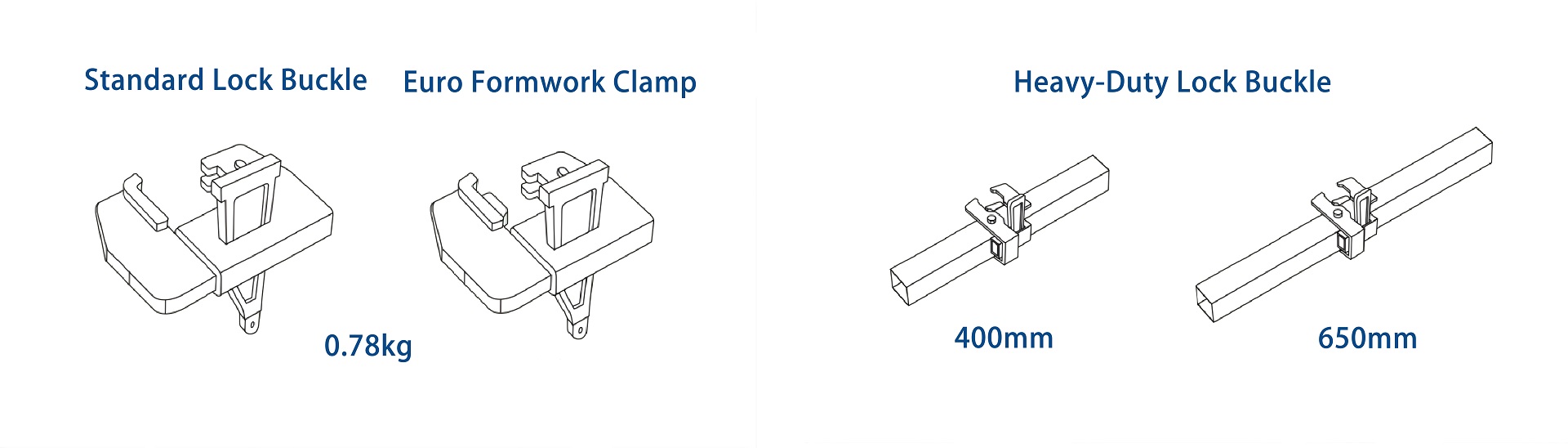

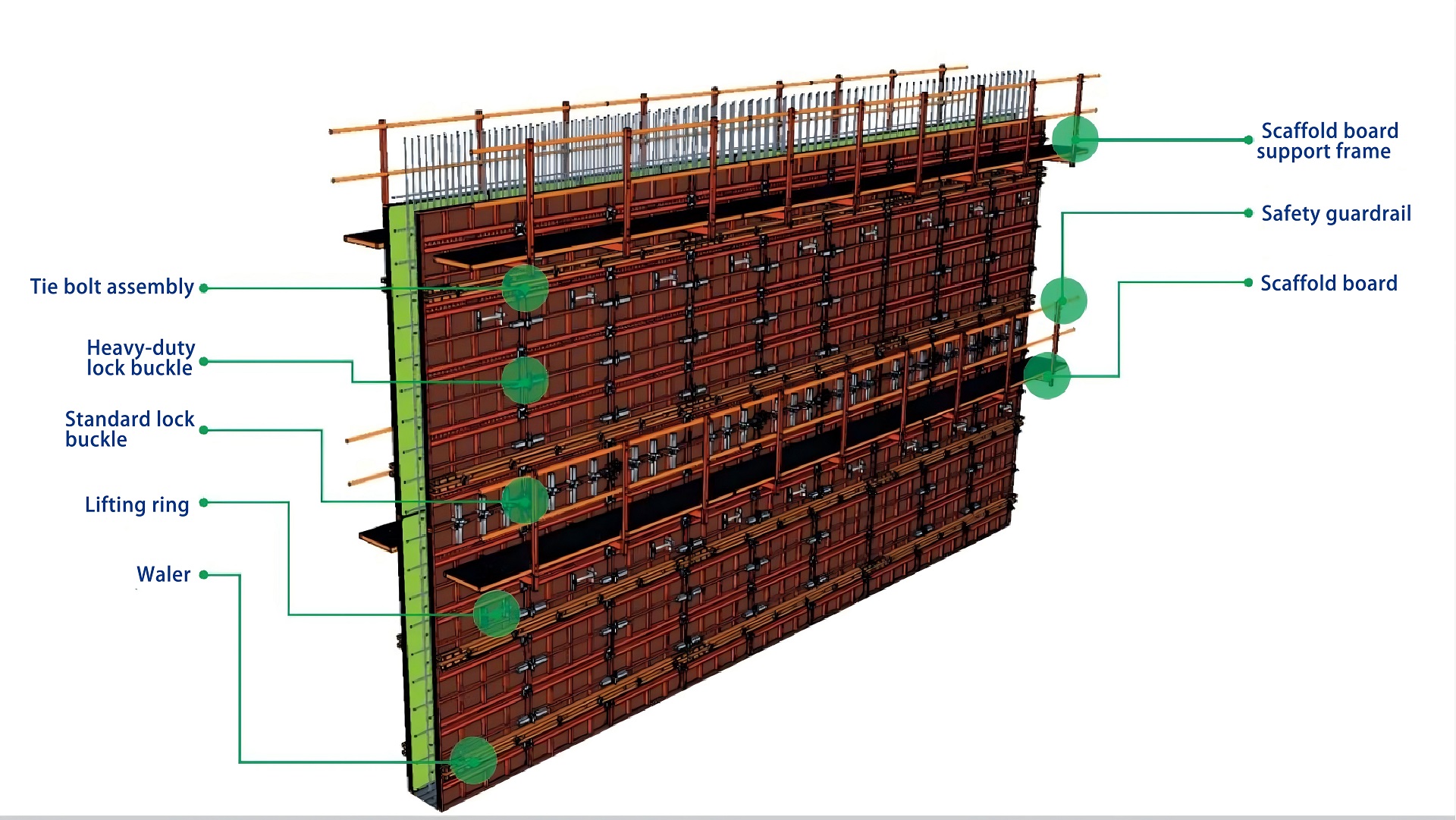

Lock Clamp Types	Standard lock, Euro form lock, heavy-duty lock, adjustable lock, external corner lock
Joint Quantity	Fewer joints than other modular formwork systems for same structure size
Compatibility	Combinable with cantilever support, single-side support and trolley systems

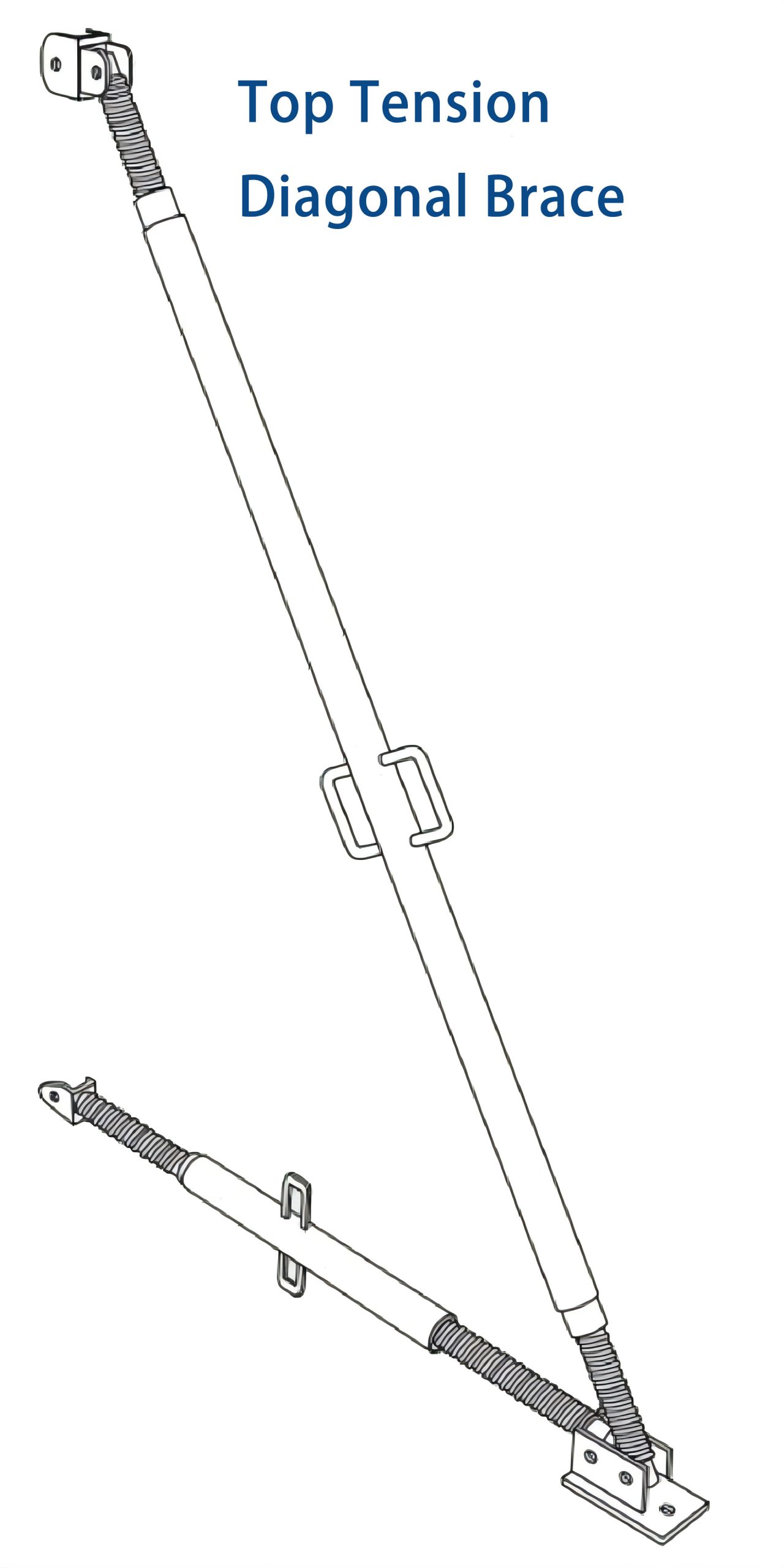

Accessories



• High integrity for tall wall: Strong overall rigidity allows safe one-pour wall height up to 10m; high turnover efficiency with fewer joints than similar modular formwork.
• Large-panel fast assembly: Standard units assembled into large panels only by lock clamps, no extra auxiliary materials, greatly improving on-site installation speed.
• High system compatibility: Combinable with cantilever supports, single-side supports and trolleys to form cantilever, single-side and utility tunnel formwork systems for complex scenarios.
• Standardized accessories: Full series of standardized locks, back ribs and tie rod systems with strong interchangeability, easy for site management and replacement.

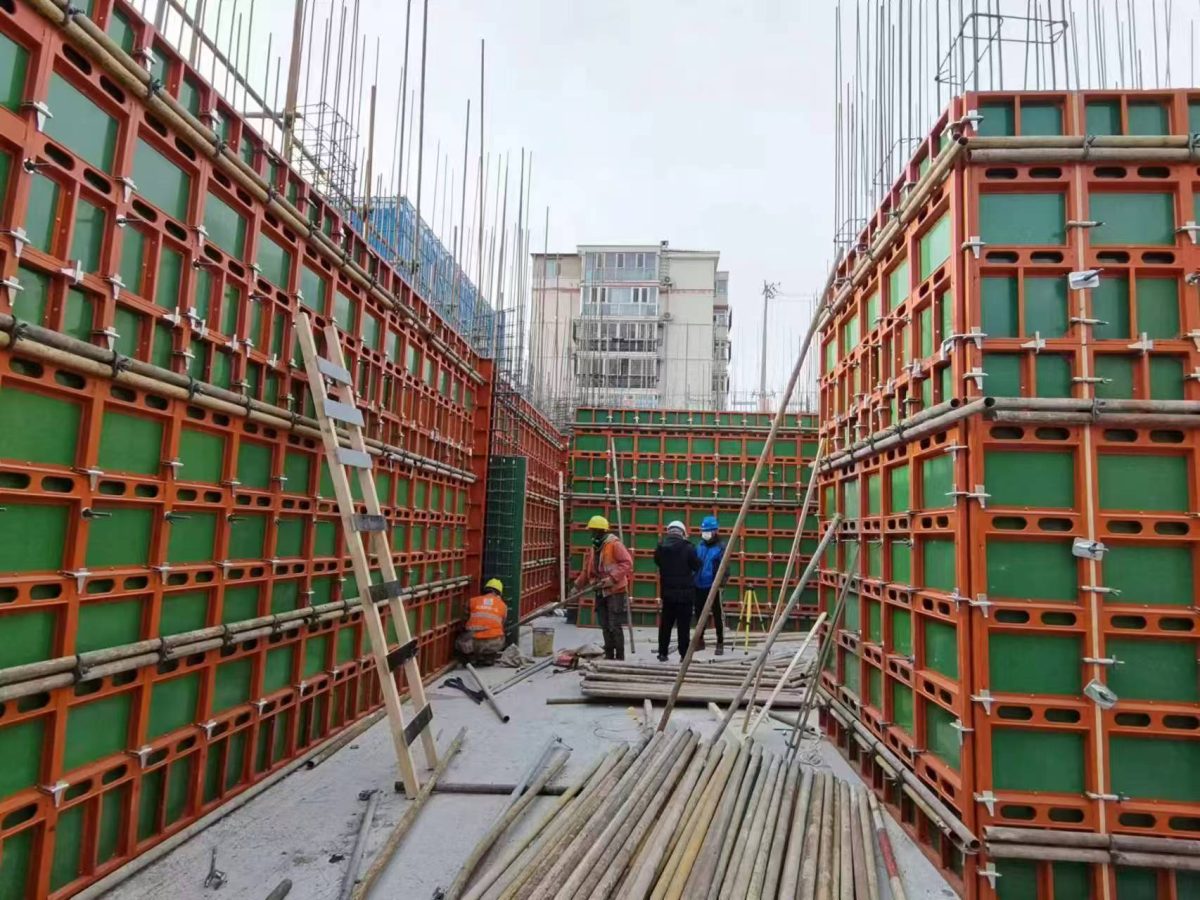

Shear walls in high-rise building core tubes; basement exterior walls and civil air defense walls; utility tunnel and tunnel side walls; water conservancy and municipal long straight wall projects.
