Single-side Formwork System

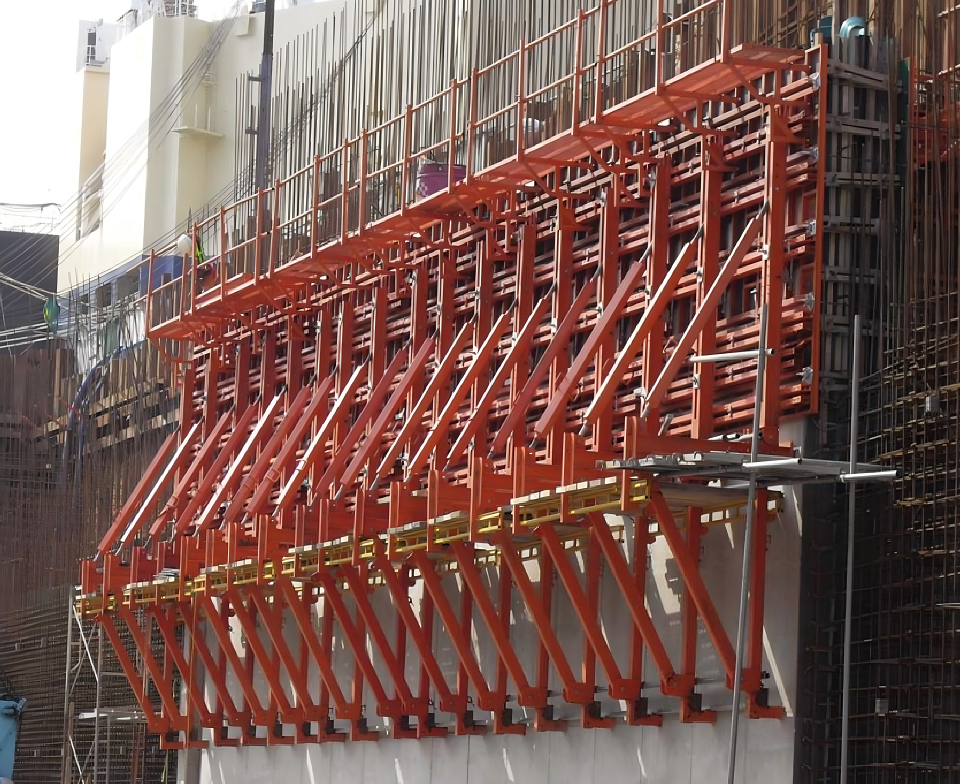

The single-side formwork system is specially designed for wall construction where bilateral tie rods are unavailable. It adopts a lightweight truss support matched with steel frame panels, enabling single-side wall pouring without wall-penetrating bolts, with a maximum single-pour height of 6m. The support is lightweight for manual handling and installation, independent of hoisting equipment, and can move integrally when equipped with traveling wheels. It is especially suitable for narrow and restricted sites such as basement exterior walls, subway stations and lining walls adjacent to retaining structures.

Parameter	Details

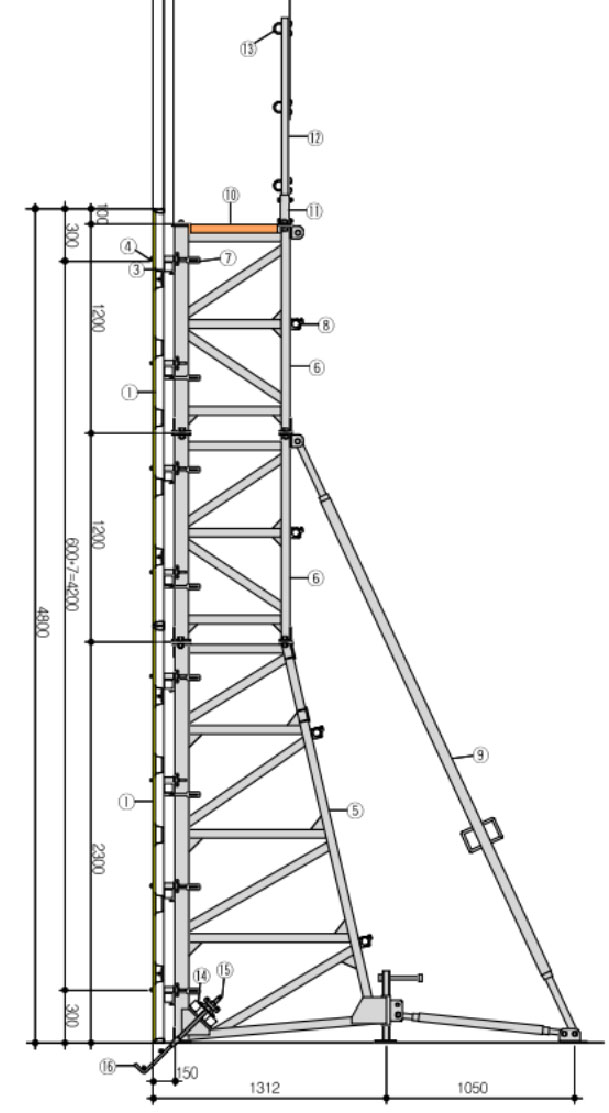

Structure	Lightweight truss type single-side support + steel frame formwork panel
Max Single Pour Height	Up to 6m in one concrete pour without through tie rods
Available Heights	2.4 / 3.0 / 3.6 / 4.2 / 4.8 / 5.4 / 6.0m (combinable)
Mobility	Integral movement with wheels on suitable ground condition
Installation	Manual handling and installation available, no hoisting machinery required
Compatibility	Compatible with other formwork types after replacing few accessories



• No through tie rod, single-side forming: No wall-penetrating tie rods required, ideal for basement exterior and lining walls adjacent to retaining structures where tie rods are unavailable.
• Lightweight & portable: Light truss support allows manual handling and installation, independent of tower cranes, suitable for narrow and restricted construction sites.
• Integral mobility: With wheels, formwork and support can move as a whole, greatly improving continuous wall construction efficiency and shortening project period.

Single-side formwork for basement exterior walls; subway station and utility tunnel side walls; lining walls adjacent to foundation pit supports; wall projects in narrow sites without hoisting equipment.
