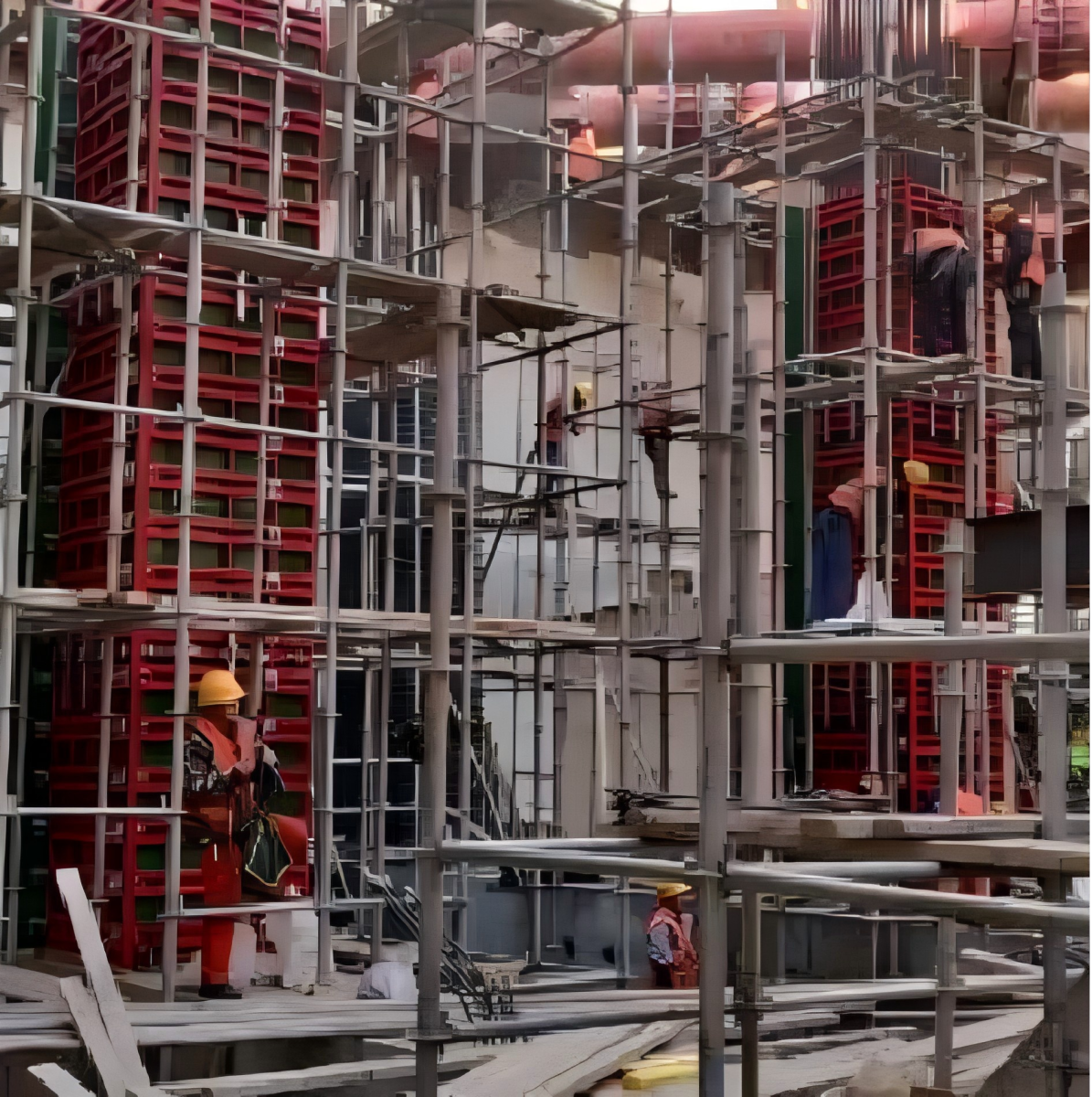

Adjustable Square Column Steel Frame Formwork

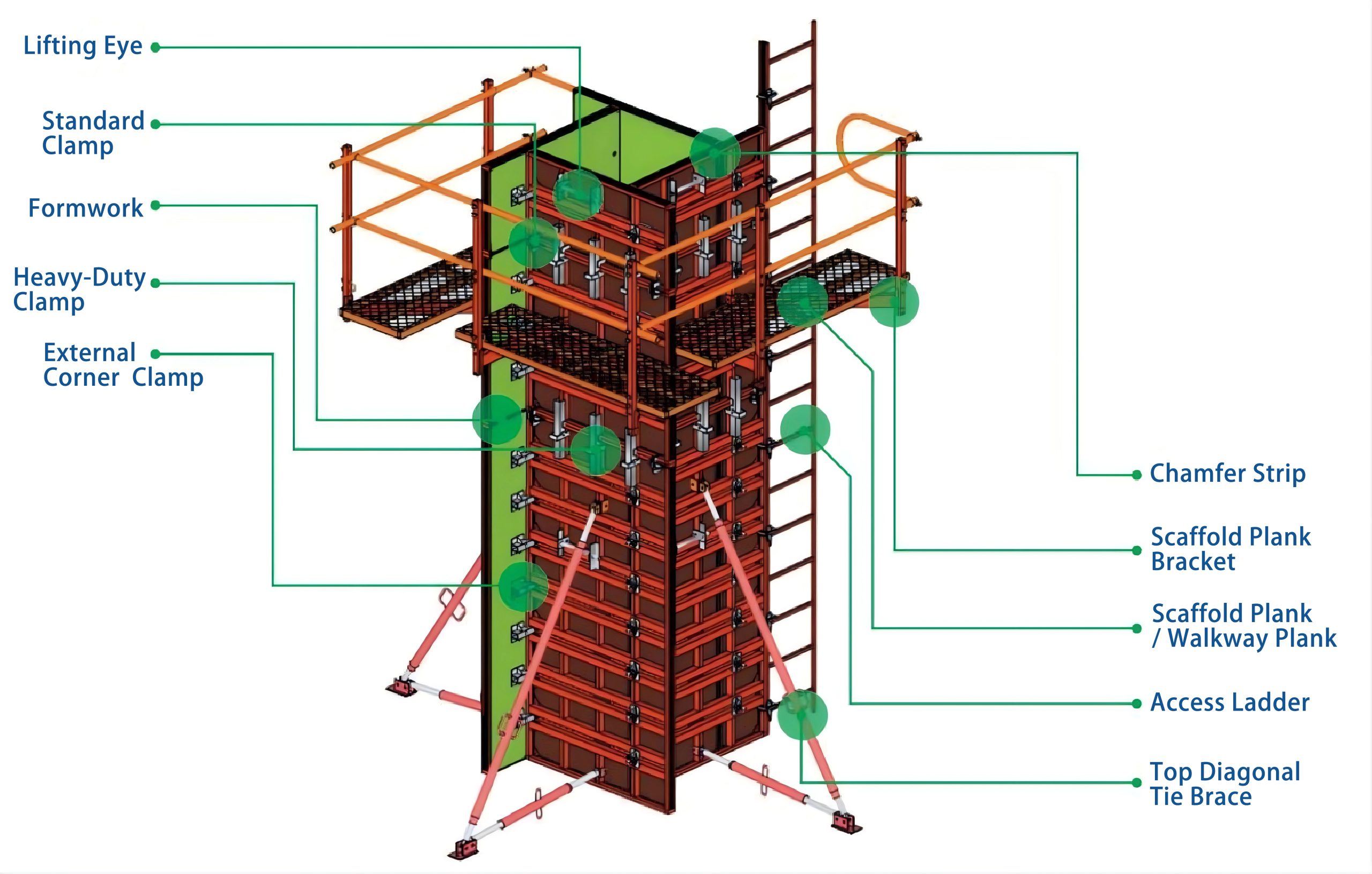

The Adjustable Square Column Formwork System is an integrated prefabricated steel frame formwork solution, fully composed of standard steel frame formwork panels, dedicated connection locks, custom chamfer strips, access ladders and working platforms, specially designed for the construction of various cast-in-place concrete square and rectangular columns. The system uses hot-pressed film faced plywood as the facing material, which can be reused for 30 turnovers under normal construction conditions, while the steel frame supports long-term repeated turnover.

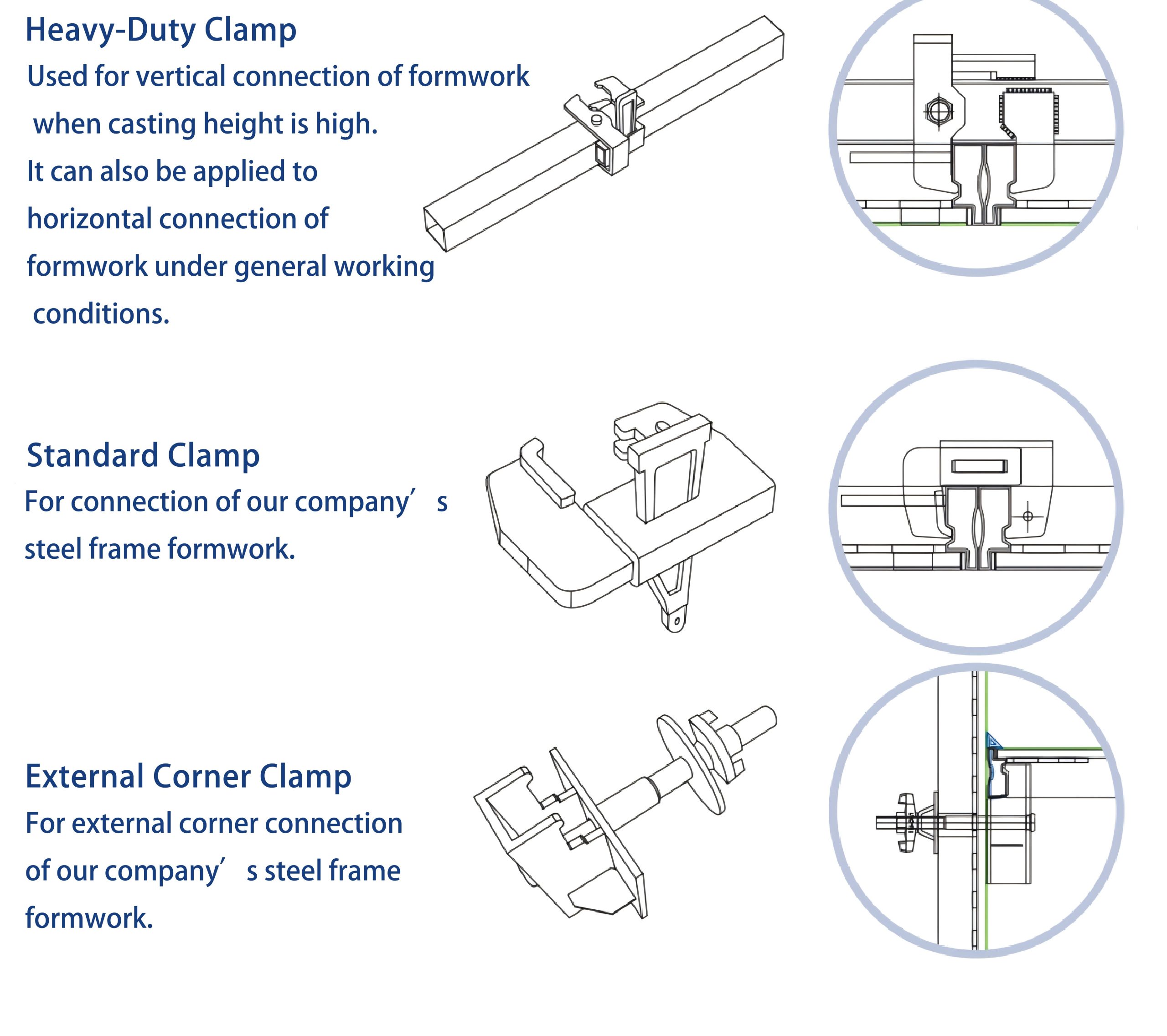

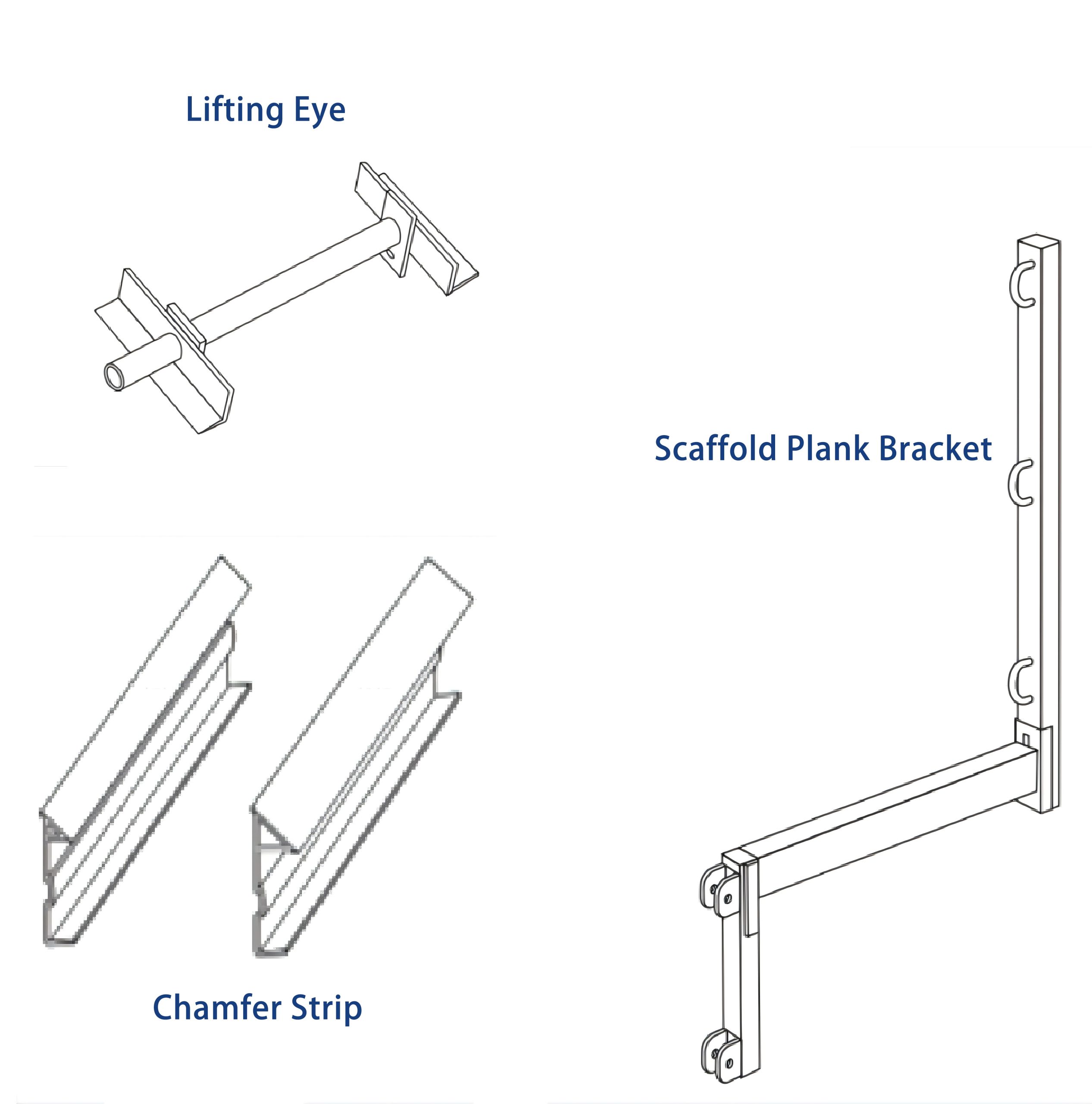

Accessories

Steel-Frame-Formwork-Accessories

• Flexible size adjustment: Adjustable section width and height fit variable column sizes; one set covers multiple specifications, reducing inventory pressure.
• No through tie rod: Eliminates tie rod, sleeve and other consumables; no bolt holes on column surface for better appearance.

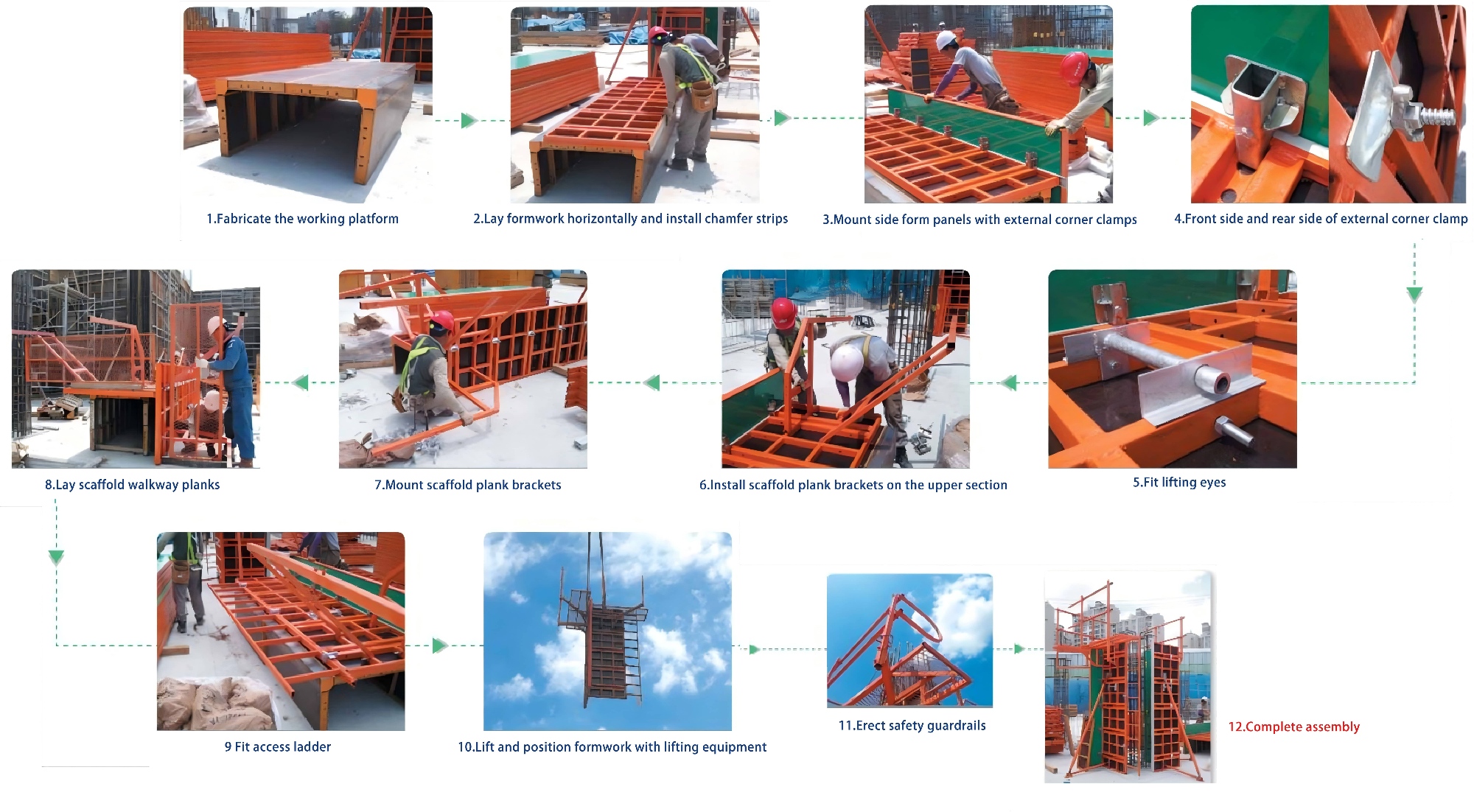

• Ultra-fast installation: Two-piece structure enables one set installed within 30 minutes, several times more efficient than traditional steel tube reinforcement.
• High forming accuracy: With dedicated chamfer strips for straight vertical corners; dimension deviation up to ±1mm, meeting high-standard fair-faced concrete requirements.
• Complete accessories: Available with working platform, climbing ladder and inclined support for safe construction of high piers and tall columns.
