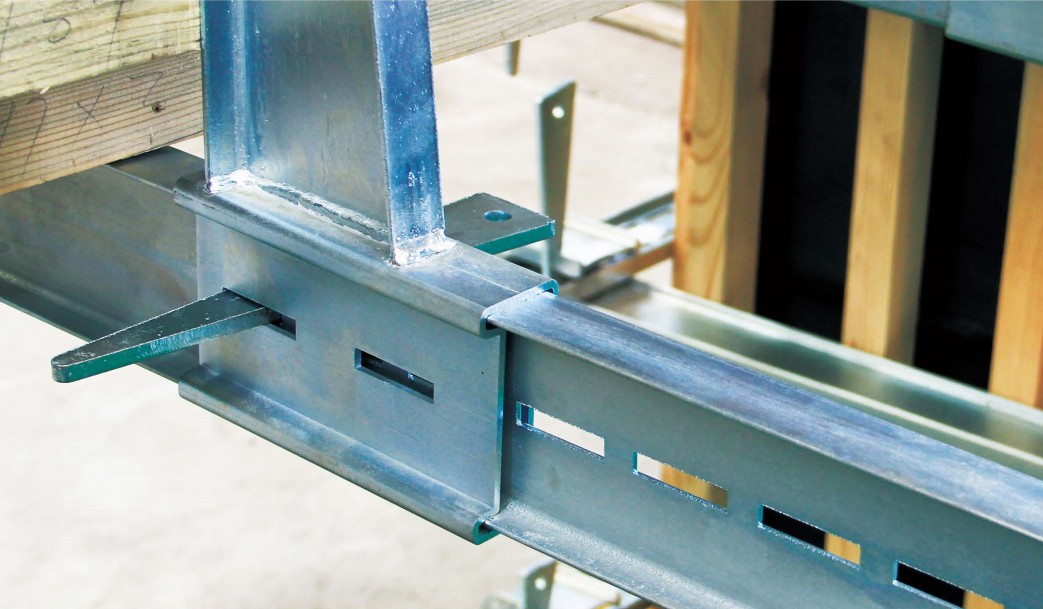

Adjustable Beam Formwork Clamp

The beam and column formwork clamp is a new type of reinforcement profile made of Q500 high-strength premium steel with galvanized surface, specially designed for beam and column formwork reinforcement.It features lighter weight but higher rigidity, more convenient operation, greater flexibility and firmer reinforcement. It delivers excellent demolding performance: the stripped column surface is smoother with perfectly vertical edges and corners.This reinforcement clamp effectively reduces construction time cost, labor cost and material cost.
Parameter Details
Material Q500 high strength steel, galvanized
Adjustable Width 200~600mm beam width
Max Beam Height ≤800mm (double-side slab)
Components Fixed frame, adjustable frame, locking wedge, positioning screw
Feature No drilling on plywood formwork
  • No drilling on plywood to protect panels & extend turnover life.
  • Freely adjustable width fit all main & secondary beam sections.
  • Few parts & simple operation, 2 workers finish 8 sets within half day, cut labor cost by half.
  • Even force prevent slurry leakage, standard straight beam edges after pouring.
  • Easy disassembly & sorting with high reuse rate.
Main & secondary beam reinforcement for frame buildings; basement garage beams; fair-faced beam projects without through tie rods.
